Better LDR Passive Preamp Sound

Tortuga Audio has developed an improved software based LDR control algorithm that greatly improves on our already highly regarded LDRx Passive Preamps.

Key aspects of this new “HiZ” (high impedance) control algorithm include:

  • Substantially increased input impedance with a nominal 10k ohm impedance floor
  • Improved sound including better dynamics, musicality and sound stage
  • Compatibility with a much broader range of audio sources and amplifiers including many low impedance amps
  • Retains the same colorless clarity, transparency and unveiled high resolution that our LDR Passive Preamps are already known for
  • Entirely software/data driven design improvement
  • Can be retrofitted into currently owned LDRx Passive Preamps
  • Includes control compatibility with the Apple Remote

In The Beginning It Was Already Really Good!

tortugabuttonWhen we first embarked on the development of a precision digitally controlled passive preamp based on light dependent resistors (LDRs) our goal was to tame the highly variable and nonlinear LDR using the flexibility of a software based design.

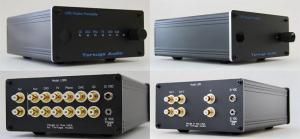

We succeeded!Tortuga Audio LDR1 & LDR6 Passive Preamplifeirs

A year ago we introduced the LDR6 and LDR1 passive preamps and then  this past spring we released the DIY LDR3x passive preamp controller board.

Our growing customer base has been very pleased with our LDR passive preamps and we find ourselves being followed around by a growing string of adoring adjectives with names like….clear, transparent, unveiled, articulate, high resolution, colorless, flawless, a.k.a that “LDR sound”.

Improving Impedance – When Resistance is NOT Futile

One year later we are now releasing a significant improvement to our LDR technology that can benefit both our existing and future customers.

To understand this improvement  we need a brief technical tutorial on impedance. If you’e not a techie don’t worry, this will be short, simple and painless.

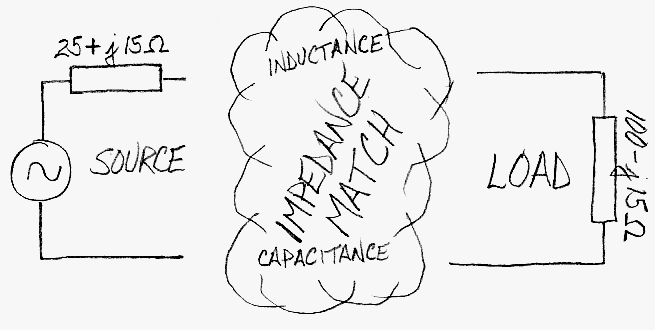

impedance matchingA key goal of any preamplifier is to ensure the maximum transfer of energy from your audio source to your amplifier while not degrading the audio signal in the process.

Once upon a time, audio designers sought to achieve this key goal through “impedance matching”.  Impedance, often represented by the symbol “Z”,  is just another word for the resistance experience by audio signals. When everything in the signal chain resists equally (i.e. the impedances match), the musical energy can flow optimally. Bottom line: impedance matching equals better sounding audio gear.

Rather than actually match impedance, contemporary audio designers take a more practical approach called “impedance bridging”. It’s a lot more flexible than actual impedance matching but it gets the job done, namely optimal sounding audio.

With impedance bridging, a low Z source such as your DAC ( with Z typically < 1000 ohms) is connected to a relatively high Z load/preamp/amp  (with Z typically > 10,000  ohms ). When this bridging Z ratio is high enough (say 10:1 or greater), most of the voltage/energy coming from the music source is able to make it to the amplifier rather than getting dumped to ground.

However, when impedance bridging is done poorly,  the music may lack dynamics. Drums may lack that satisfying “slam”.  The music may not sound as full or lush. It may lack that “je ne sais quoi” some call musicality. And worst of all the music may lack emotional involvement. And that won’t do!

Ok, so what does this have to do with improving on the  awesome sound of our LDR based passive preamps?

LDR Preamps & The Low Impedance Issue

low_impedanceDespite the clear benefits of LDR based volume control, the typical analog  approach to controlling LDRs has historically resulted in LDR based preamps operating at very low impedance levels of below 1,000 ohms.

And although Tortuga Audio’s LDR based preamps utilize software based digital control, our first generation designs emulated this same analog control approach resulting in the same unfavorable low input impedance.

This is illustrated in the graphic above where we see the resistance (DC impedance) of a typical set of series/shunt LDRs plotted over their control range.  The combined series plus shunt resistance (i.e. the input impedance) falls well below 1000 ohms over much of the range and doesn’t reach reasonably high levels (10k or above) until you approach very high volume levels that occur at the far right side of the curves.

That is about to change!

The New HiZ LDR Preamp Control Algorithm

No, in fact it HAS changed! All future orders of our LDR based preamp products will use our new HiZ (high impedance) control algorithm.

Since this is entirely a software based design improvement, the HiZ software is also available as an upgrade for current owners that received delivery of any of our passive preamps prior to Nov 15th, 2013.

We believe this high impedance LDR control design is unique to Tortuga Audio and wouldn’t even be possible but for Tortuga Audio’s proprietary software based digital control approach which gives us the ability to program and control the behavior of each individual LDR  through software.

 Tortuga Audio's high impedance LDR preamp curves

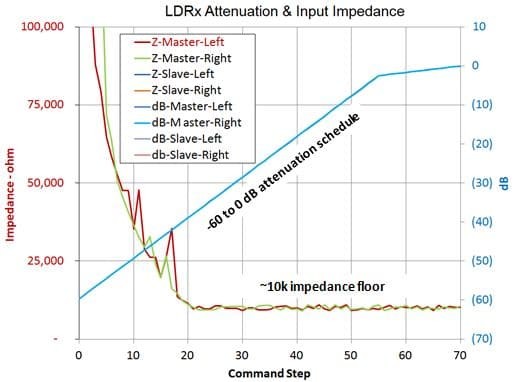

The above chart shows attenuation and input impedance curves that are typical of the new HiZ control algorithm. Using the same raw test data shown in the earlier graphic above, we apply proprietary data processing to yield a  70 step 0-60 dB attenuation schedule while keeping the input impedance at or above a nominal floor. In the above example the impedance floor is 10k ohms which is now the nominal input impedance spec for all of our LDR passive preamps.

The irregularities in the impedance plot shown above are the result of finding the optimum settings at each dB step while also maintaining the the targeted impedance level. The irregularities are also a consequence of quantization effects from having a finite data sample set using 8 bit technology (max 256 data points) . The irregularities in impedance are not audible and are stable at each volume setting.  From step 0  to 20, the impedance actual rises substantially above the impedance floor. This is necessary in order to extend attenuation control down to -60 db. The impedance level reaches a steady floor level from approximately -40 dB up to full volume.

Audio energy (loudness) doubles for every 3 dB reduction in attenuation. Thus, when you’re already REALLY loud near full volume, even a 1 dB incremental step can be jarring and feels like you’ve lost control. Our custom attenuation schedule tames this phenomena. Note that the dB schedule has a knee at 2.5 dB at step 55. From this point on, the incremental dB change per step becomes more granular up to max volume. The finer granularity of dB control step near full volume avoids large steps in sound pressure increase.
