LDR3.V25K Passive Preamp Kit
Price: $749
This is a legacy product and is no longer produced or sold by Tortuga Audio.
| This kit was discontinued with no planned direct replacement. |

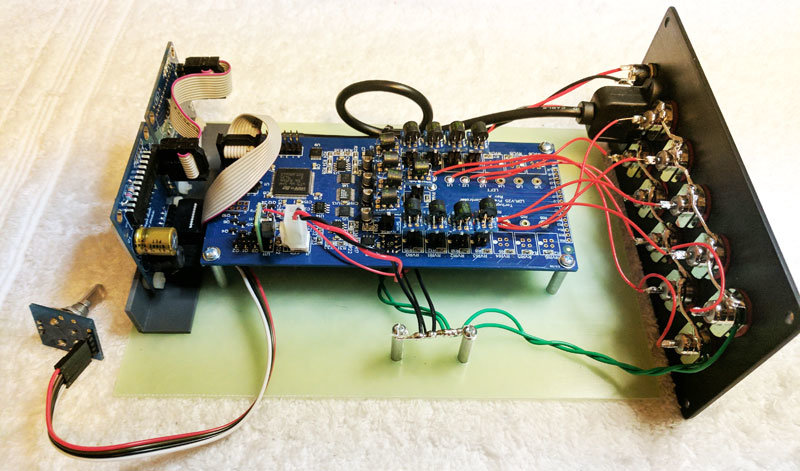

The LDR3.V25K is a complete 3-input, 2-output single-ended passive preamp kit built around Tortuga Audio’s V25 preamp controller board. All circuit boards are provided fully built and tested — no soldering of components to circuit boards required. The kit includes everything needed to assemble a complete audiophile grade passive preamp: enclosure, front/rear panels, interactive OLED display, RCA jacks, power supply, manual encoder/knob, remote, and wire.
| The kit is sonically identical to the LDR3.V25 Passive Preamp that Tortuga Audio sold as a finished product, built around the same V25 preamp controller board — that page is the technical reference for the electronics themselves. |
Kit vs. finished unit
The differences between the base kit and the non-kit LDR3.V25 are:
-
Front panel — the kit’s is acrylic, where the finished unit uses brushed anodized aluminum
-
RCA jacks — the kit uses generic jacks (Cardas available as a paid upgrade), where the finished unit uses Cardas jacks standard
Not a difficult kit to build
On a scale of 1-10 (10 being expert level), this kit was rated around a 2-3 difficulty level. Most of the work is straightforward mechanical assembly and point-to-point soldering of wires, plus plugging in a few cables.
In addition to the kit itself, building it requires:
-
Solder
-
Soldering iron
-
Allen (hex) wrench for the socket head screws that attach panels
-
Wire strippers
-
Wire cutters
-
Small screwdrivers (regular and Phillips) for stand-off screws, encoder knob, etc.
-
Wrenches and/or sockets for the RCA jacks and various nuts
Optional items
-
RCA jacks — upgrade to Cardas RCA jacks
